CD200

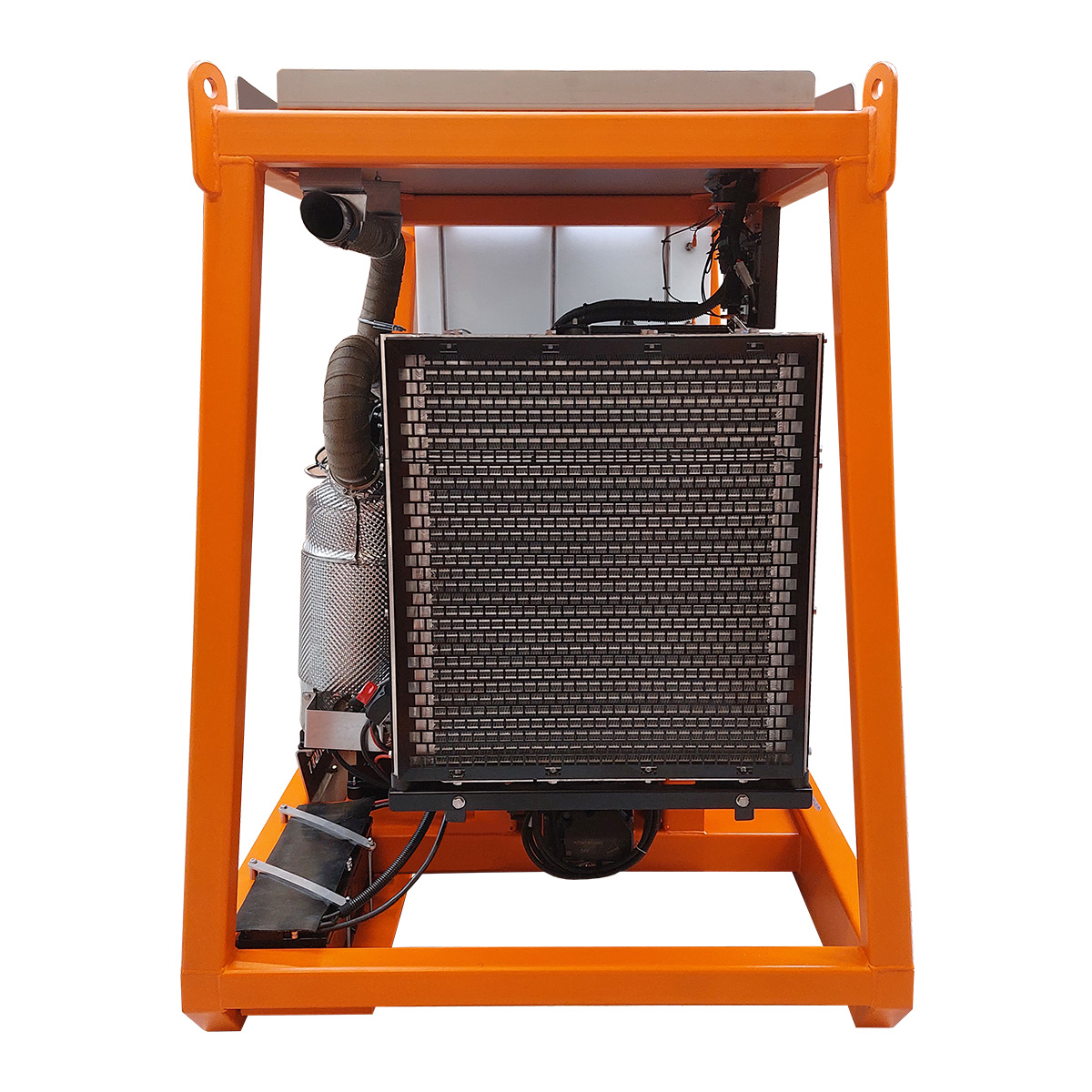

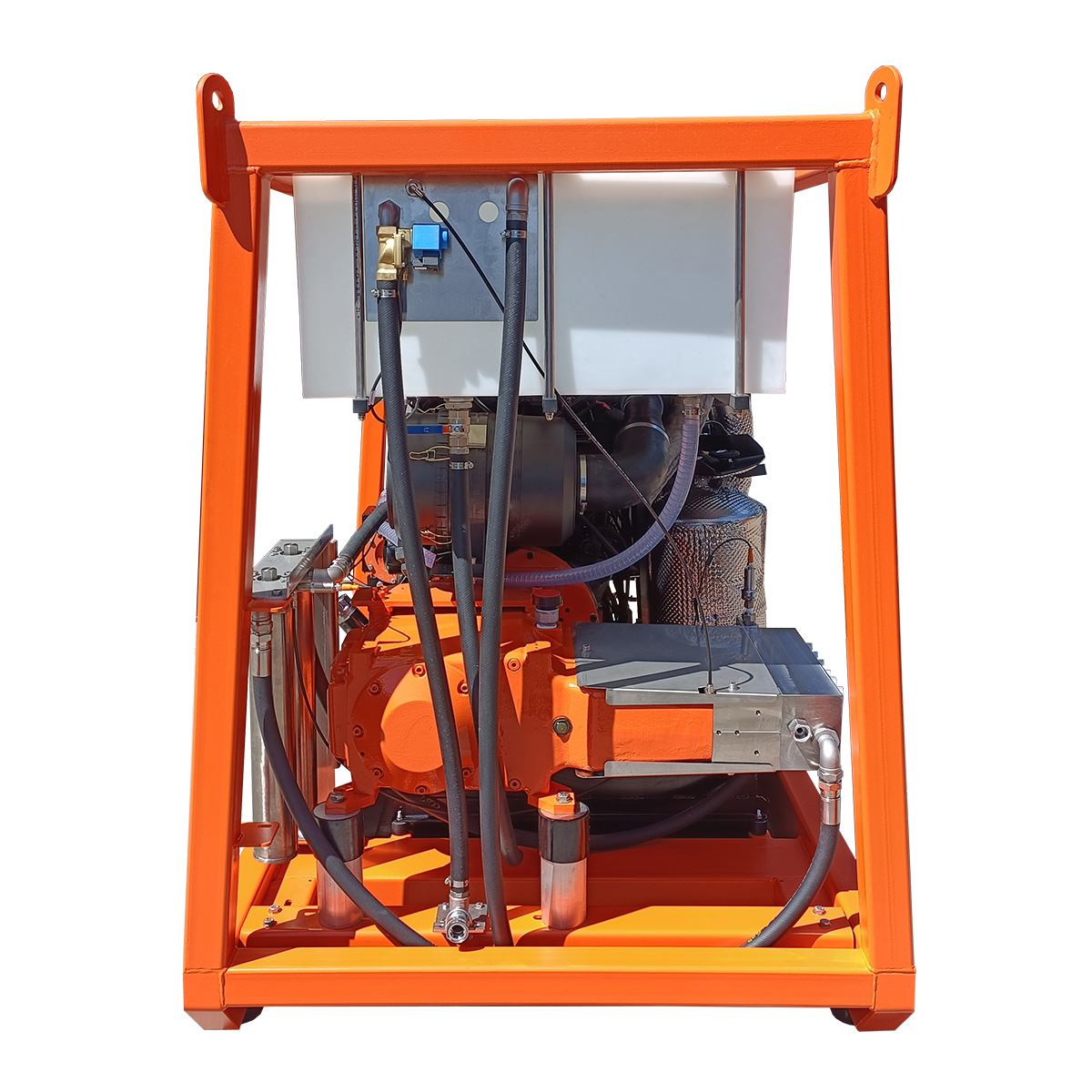

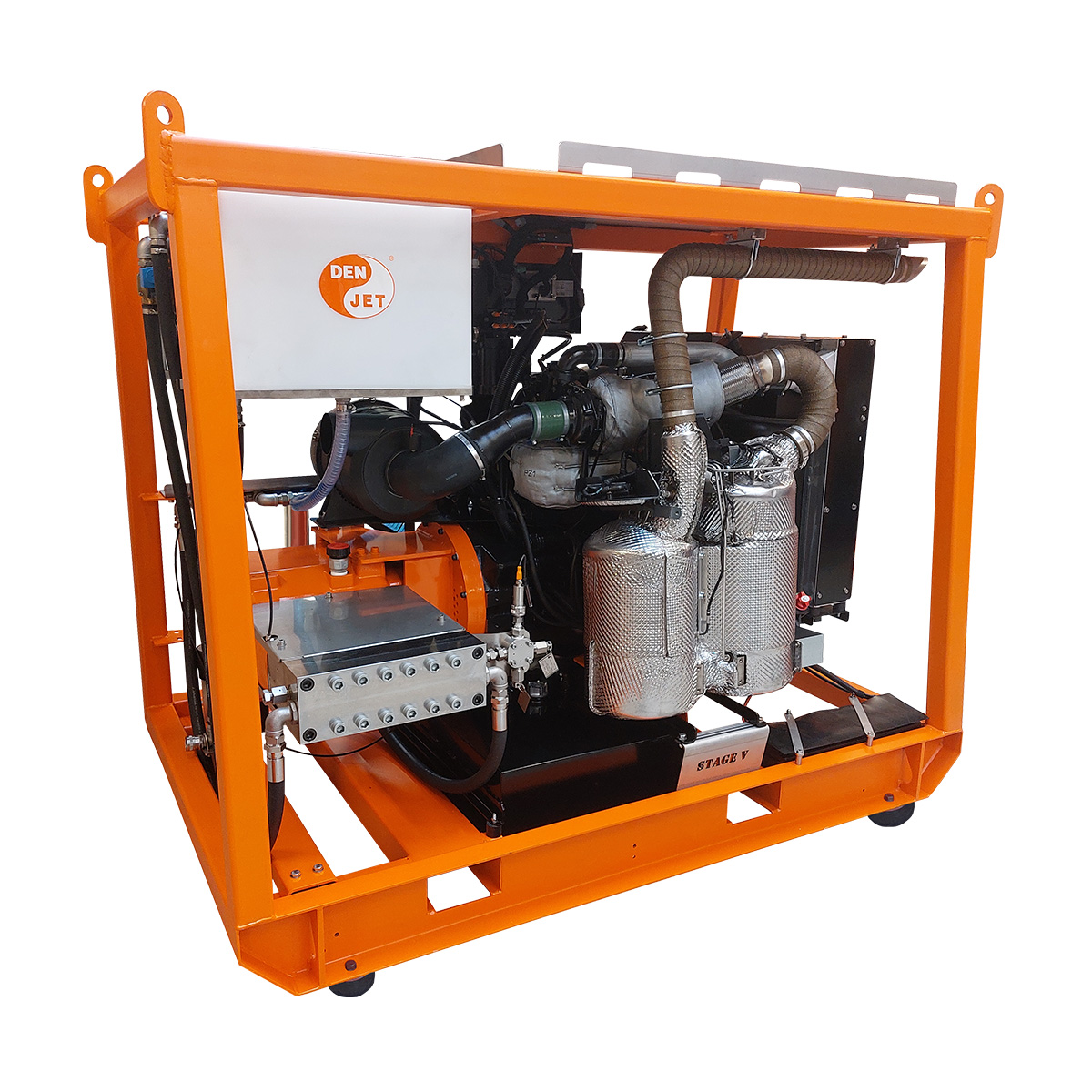

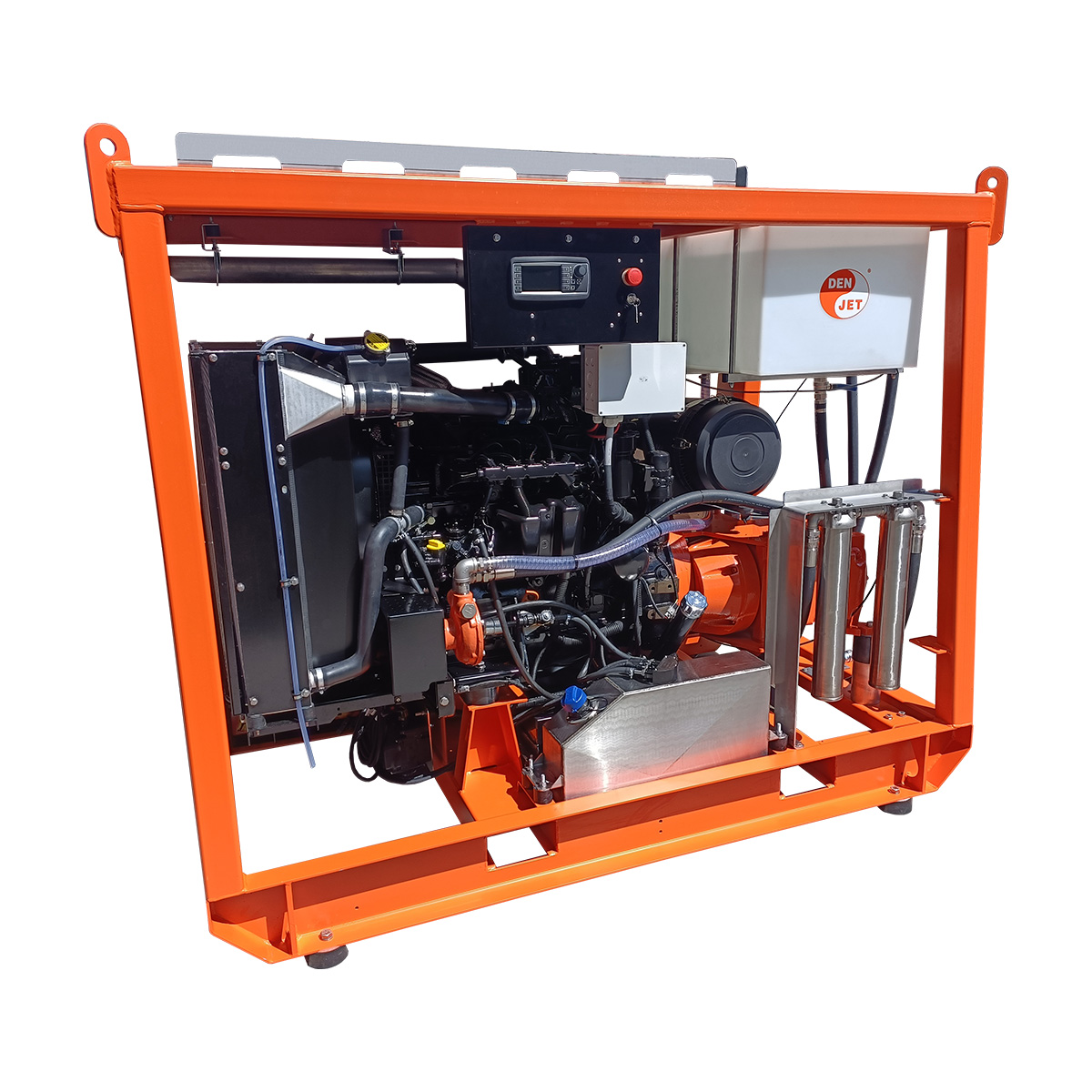

The CD200 range of water-blasters and water-jetting machines goes from 200 to 2500 Bar with pump flows from 25 to 300 L/min. The pump is driven by a 4 cylinder AGCO Power diesel engine, which contains a Stage V compliant exhaust system with DOC + DPF + SCR. The all enclosing frame is made corrosion resistant and is primed and painted for a nice appearance. The machine foot print is 2250 x 950mm of floor space. The frame are equipped with rubber feet under all four corners and the machine have forklift pockets as well as lifting eyes in all four corners. The machines have roof plates with side railings for protection and storage of for example high pressure hoses.

Models

Model
Pressure
Flow
CD200-200
200 bar
300 Lpm
CD200-250
250 bar
250 Lpm
CD200-1000
1000 bar
63 Lpm
CD200-1380
1380 bar
42 Lpm
CD200-2500
2500 bar
25 Lpm

General Specifications

Max Pump Speed560 rpm
Engine4 Cyl. AGCO Stage V Diesel
Engine Power149.1 kW
Engine RPM1950 rpm
Tank135 L
Max Fuel Consumption20.0 L/h
Dimensions2170mm x 1350mm x 1810 mm (1785 kg)
