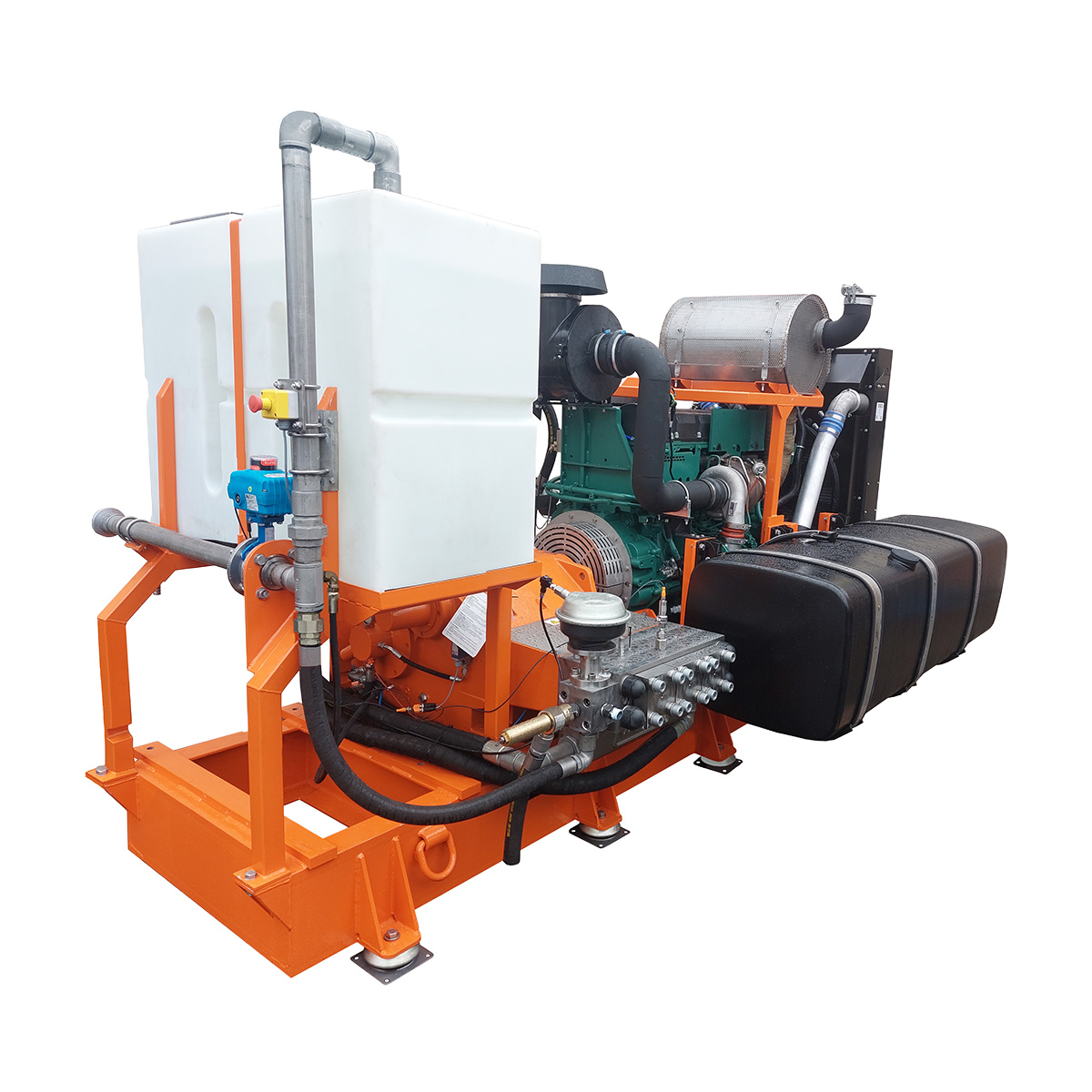

CD700

The CD700 can easily perform cleaning applications with high requirements of flow and pressure. The pump is driven by a 6 cylinder Volvo diesel engine. Two variations of the engine exist with EU Stage V / US EPA Tier 4 final compliant exhaust system or with EU Stage 2 / US EPA Tier 2 compliance. The Stage V solution is an SCR only exhaust system. The frame is made corrosion resistant and is primed and painted for a nice appearance. The frame is equipped with rubber mounts and forklift pockets. The machine can either be supplied as a open frame solution or a fully built-in solution in trailer or container.

The CD700 can be equipped with a manual gearbox, allowing the pump to run at multiple flow ranges and even allowing hand-held operation at the lowest gear.

Models

Model
Pressure
Flow
CD700-1000
1000 bar
261 Lpm

General Specifications

Max Pump Speed522 rpm
Engine6 Cyl. Volvo Diesel EU Stage V or EU Stage II
Engine Power522.0 kW
Engine RPM1800 rpm
Tank800 L
Max Fuel Consumption90.0 L/h
Dimensions3900mm x 2030mm x 2300 mm
