CE150

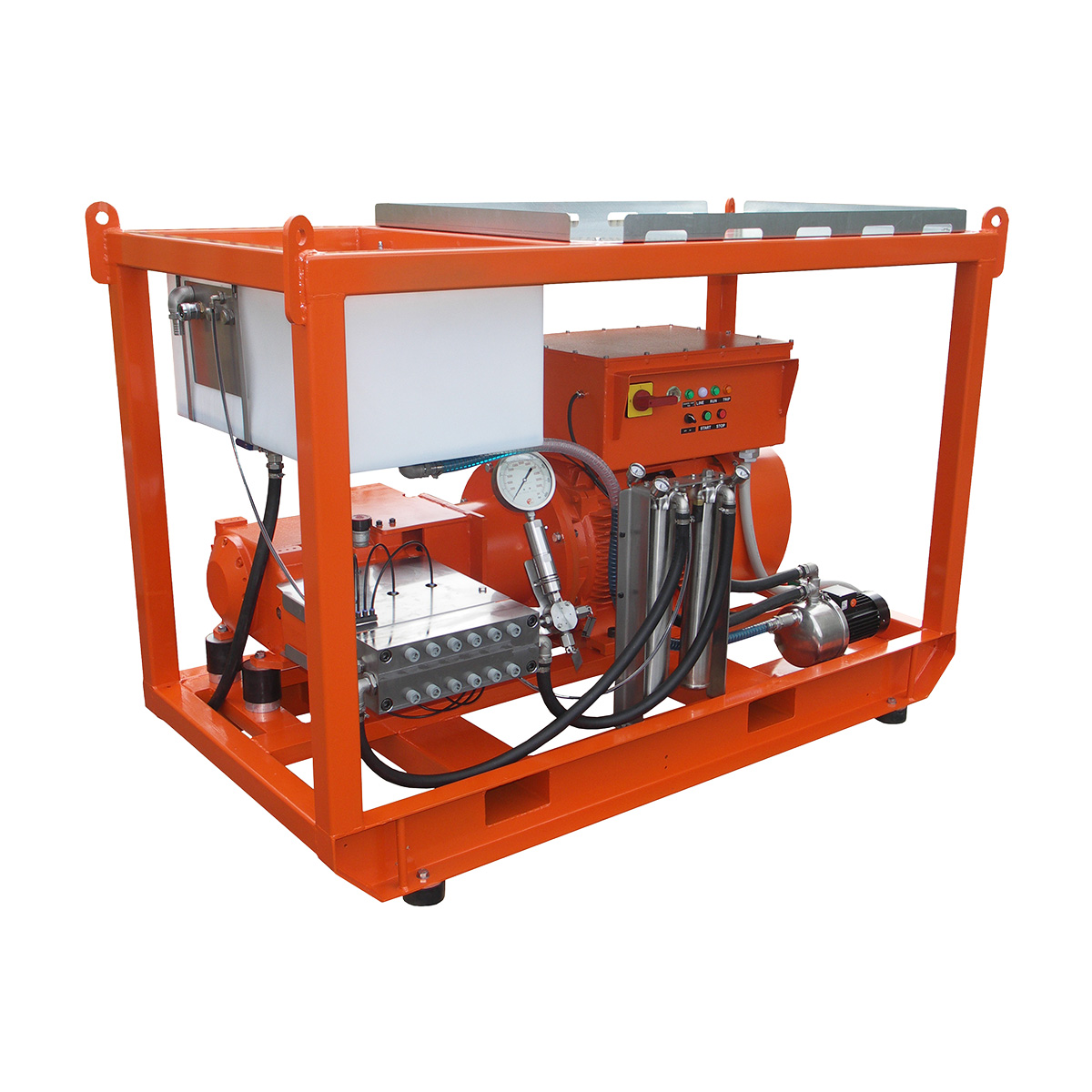

The CE150 series of machines are electrically driven pumps with a pressure from 200 to 2500 Bar and from 21 to 240 L/min in flow. The frames are made from hot dip galvanized pressed sheet metal parts and stainless steel perimeter frame rails. Four rubber feet for secure positioning One hook lifting eye.
Models
50Hz
60Hz
Model
Pressure
Flow
Pressure
Flow
CE150-200
200 bar
240 Lpm
200 bar
300 Lpm
CE150-250
250 bar
200 Lpm
250 bar
250 Lpm
CE150-1000
1000 bar
50 Lpm
1000 bar
63 Lpm
CE150-1400
1400 bar
33 Lpm
1380 bar
42 Lpm
CE150-2500
2500 bar
21 Lpm
2500 bar
25 Lpm
General Specifications
Engine Power111.9 kW
Dimensions2100mm x 1200mm x 1400 mm (2200 kg)
Volt400V (50Hz) - 440V (60Hz)
Amps191A (50Hz) - 191A (60Hz)
