CDT50

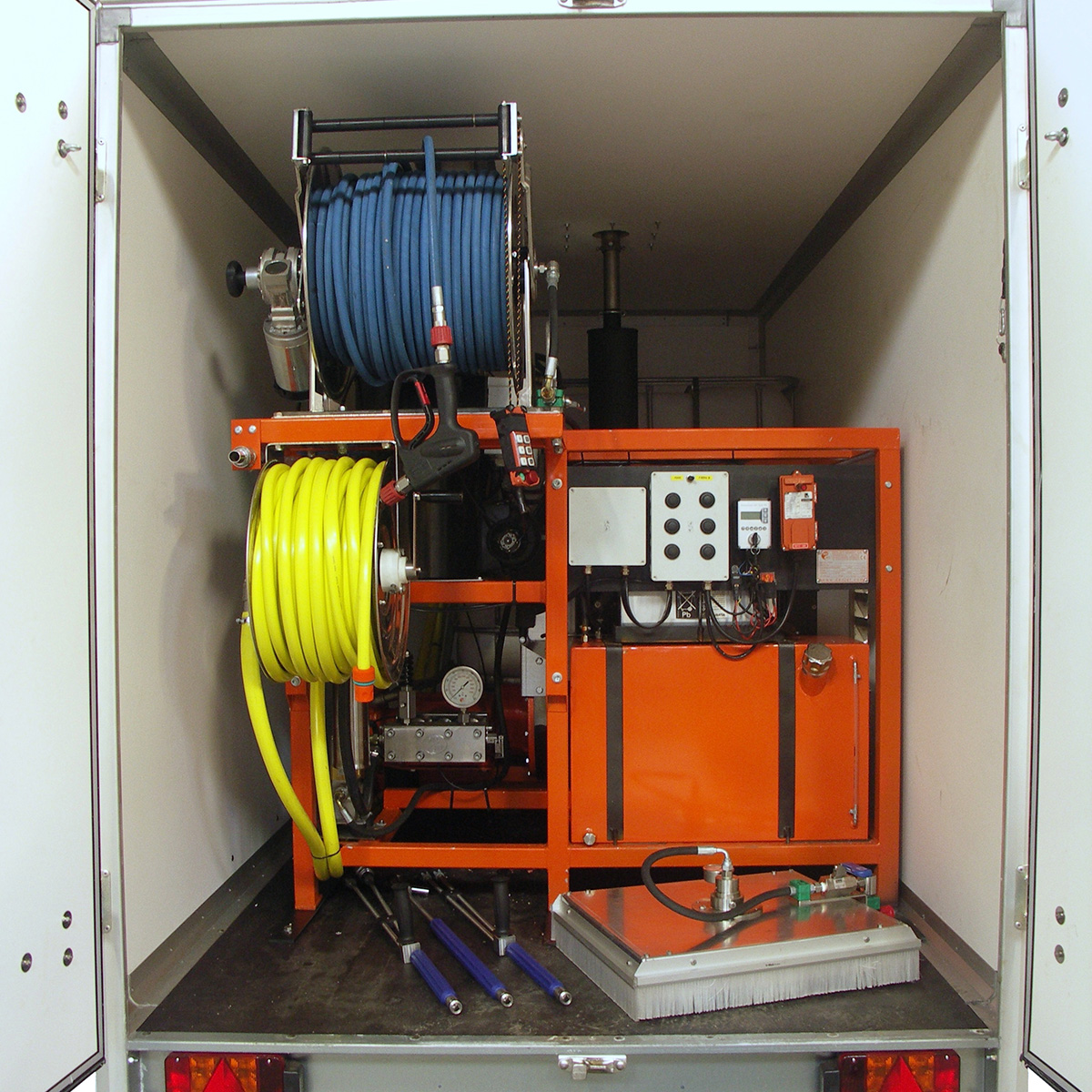

The CD50 TRAILER range of water-blasters and water-jetting machines goes from 230 to 2000 Bar with pump flows from 11 to 80 L/min. The pump are driven by a 4 cylinder water cooled Toyota diesel engine and the frame inside the trauler is made corrosion resistant and is primed and painted for a nice appearance. The frame with the machine on are easy to slide out for service. The CD50 Trailers can be configured with many different options like hot water boilers, electrical operated hose reels, remote control etc.
Models
Model
Pressure
Flow
CDT50-230
230 bar
80 Lpm
CDT50-400
400 bar
40 Lpm
CDT50-500
500 bar
33 Lpm
CDT50-700
700 bar
25 Lpm
CDT50-1000
1000 bar
20 Lpm
CDT50-1250
1250 bar
15 Lpm
CDT50-1380
1380 bar
13 Lpm
CDT50-2000
2000 bar
11 Lpm
General Specifications
Max Pump Speed1160 rpm
EngineToyota Diesel 4 Cyl. Water cooled
Engine Power37.3 kW
Engine RPM1900 rpm
Tank90 L
Max Fuel Consumption11.0 L/h
Dimensions3050mm x 1700mm x 1900 mm (2000 kg)
